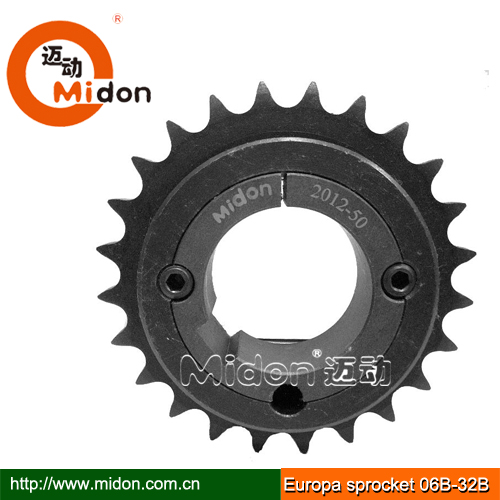

錐套鏈輪分為主動鏈輪和從動鏈輪，主動鏈輪通過花鍵的形式裝在發動機輸出軸上；通過鏈條將動力傳遞給驅動輪，一般主動鏈輪比從動鏈輪要小，可起到降速增扭的效果。
錐套鏈輪的優勢特征：
1、錐套漲緊式設計，避免隱性公差，傳動精度高。
2、易安裝，好維護和方便潤滑，可適合長時間大扭力下工作。
3、屬于實惠耐用傳動元件大小輪傳動變化時產生速比的變化。
廣泛應用于農業機械、建筑機械、石油機械、采礦、起重、金屬切削機床等行業機械。

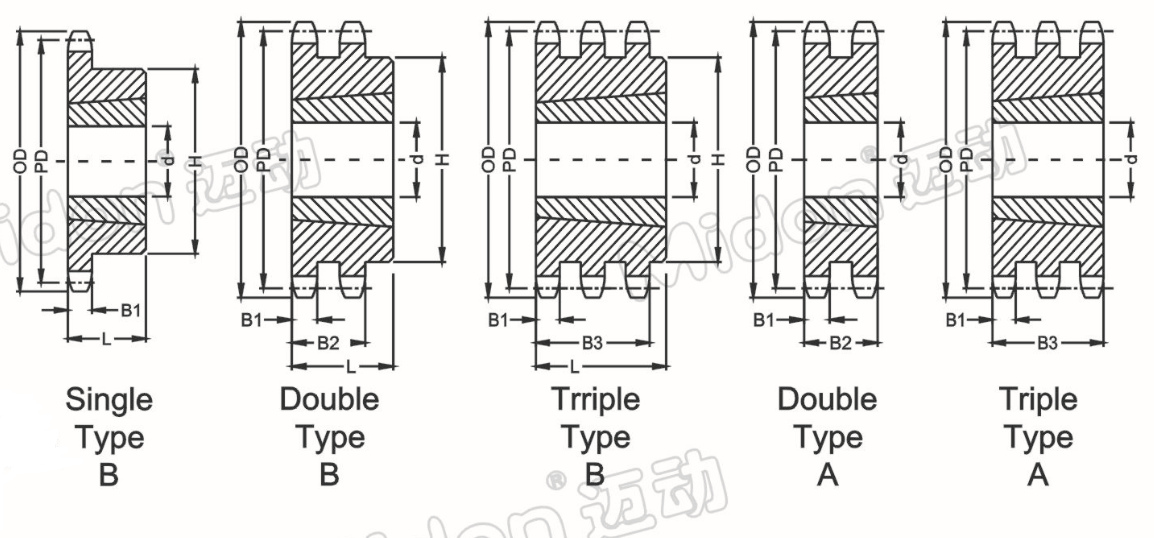

| 邁動06B漲緊式錐套鏈輪 | ||||||||||||||
| 節距(Pitch)=9.525(mm)=3/8" | ||||||||||||||
| 主要參數 | 06B-1單排（Single） | 06A-2雙排（Duplex） | ||||||||||||
| 齒數 Teeth | 外徑O.D | 節徑P.D | 型號/齒數-排數 | 錐套bush | 最大孔 Max | B型凸臺Hub | 重量 W.t | 型號/齒數-排數 | 錐套bush | 最大孔 Max | B型凸臺Hub | 重量 W.t | ||
| 轂徑H | 輪厚L | B型. Kg | 轂徑H | 輪厚L | A型. Kg | |||||||||
| 17 | 55.30 | 51.83 | 06B17-1 | 1008 | 25 | 45 | 22 | 0.21 | 06B17-2 | 1008 | 25 | 42 | 22 | 0.2 |
| 18 | 58.30 | 54.85 | 06B18-1 | 1008 | 25 | 45 | 22 | 0.22 | 06B18-2 | 1008 | 25 | 43 | 22 | 0.21 |
| 19 | 61.30 | 57.87 | 06B19-1 | 1008 | 25 | 45 | 22 | 0.23 | 06B19-2 | 1008 | 25 | 46 | 22 | 0.27 |
| 20 | 64.30 | 60.89 | 06B20-1 | 1008 | 25 | 46 | 22 | 0.25 | 06B20-2 | 1008 | 25 | 48 | 22 | 0.29 |
| 21 | 68.00 | 63.91 | 06B21-1 | 1008 | 25 | 46 | 22 | 0.27 | 06B21-2 | 1008 | 25 | 49 | 22 | 0.33 |
| 22 | 71.00 | 66.93 | 06B22-1 | 1210 | 32 | 50 | 22 | 0.36 | 06B22-2 | 1008 | 25 | 52 | 22 | 0.41 |
| 23 | 73.50 | 69.95 | 06B23-1 | 1210 | 32 | 63 | 25 | 0.51 | 06B23-2 | 1210 | 32 | 59 | 25 | 0.51 |
| 24 | 77.00 | 72.97 | 06B24-1 | 1210 | 32 | 63 | 25 | 0.53 | 06B24-2 | 1210 | 32 | 63 | 25 | 0.47 |
| 25 | 80.00 | 76.02 | 06B25-1 | 1210 | 32 | 63 | 25 | 0.56 | 06B25-2 | 1210 | 32 | 65 | 25 | 0.55 |
| 26 | 83.00 | 79.02 | 06B26-1 | 1210 | 32 | 63 | 25 | 0.56 | 06B26-2 | 1210 | 32 | 65 | 25 | 0.62 |
| 27 | 86.00 | 82.02 | 06B27-1 | 1210 | 32 | 63 | 25 | 0.59 | 06B27-2 | 1210 | 32 | 65 | 25 | 0.66 |
| 28 | 89.00 | 85.07 | 06B28-1 | 1210 | 32 | 63 | 25 | 0.61 | 06B28-2 | 1210 | 32 | 65 | 25 | 0.71 |
| 29 | 93.30 | 88.09 | 06B29-1 | 1210 | 32 | 63 | 25 | 0.61 | 06B29-3 | 1210 | 32 | 65 | 25 | 0.75 |
| 30 | 94.70 | 91.12 | 06B30-1 | 1210 | 32 | 63 | 25 | 0.62 | 06B30-2 | 1210 | 32 | 65 | 25 | 0.72 |
| 32 | 102.42 | 97.18 | 06B32-1 | 1210 | 32 | 63 | 25 | 0.8 | 06B32-2 | 1610 | 42 | 82 | 25 | 0.92 |
| 35 | 111.55 | 106.26 | 06B35-1 | 1210 | 32 | 63 | 25 | 0.85 | 06B35-2 | 1610 | 42 | 82 | 25 | 1.1 |
| 36 | 114.59 | 109.29 | 06B36-1 | 1210 | 32 | 63 | 25 | 0.85 | 06B36-2 | 1610 | 42 | 89 | 25 | 1.28 |
| 38 | 119.50 | 115.35 | 06B38-1 | 1210 | 32 | 70 | 25 | 0.95 | 06B38-2 | 1610 | 42 | 89 | 25 | 1.47 |
| 40 | 126.74 | 121.40 | 06B40-1 | 1210 | 32 | 70 | 25 | 1.07 | 06B40-1 | 1610 | 42 | 89 | 25 | 1.71 |
| 45 | 140.70 | 136.55 | 06B45-1 | 1210 | 32 | 70 | 25 | 1.13 | 06B45-2 | 1610 | 42 | 89 | 25 | 1.95 |
| 48 | 151.04 | 145.65 | 06B48-1 | 1211 | 32 | 70 | 25 | 1.25 | 06B48-1 | 1610 | 42 | 89 | 25 | 1.98 |
| 54 | 169.25 | 163.82 | 06B54-1 | 1212 | 32 | 70 | 25 | 1.39 | 06B54-1 | 1610 | 42 | 89 | 25 | 2.01 |
| 57 | 176.90 | 172.91 | 06B57-1 | 1210 | 32 | 70 | 25 | 1.81 | 06B57-2 | 1610 | 42 | 89 | 25 | 2.06 |
| 60 | 187.46 | 182.00 | 06B60-1 | 1210 | 32 | 70 | 25 | 2.09 | 06B60-1 | 1610 | 42 | 92 | 25 | 2.54 |
| 70 | 217.81 | 212.30 | 06B70-1 | 1210 | 32 | 70 | 25 | 2.35 | 06B70-1 | 1610 | 42 | 92 | 25 | 3.02 |
| 76 | 234.90 | 230.49 | 06B76-1 | 1210 | 32 | 70 | 25 | 2.64 | 06B76-2 | 1610 | 42 | 111 | 25 | 3.5 |
| 95 | 292.50 | 288.08 | 06B95-1 | 1210 | 32 | 80 | 25 | 2.93 | 06B95-2 | 1610 | 42 | 111 | 25 | 7.21 |
| 114 | 349.50 | 345.68 | 06B114-1 | 1610 | 42 | 80 | 25 | 3.31 | 06B114-2 | 2012 | 50 | 111 | 31.8 | 8.59 |
| 邁動08B系列漲緊式錐套鏈輪 | |||||||||||||
| 節距(Pitch)=12.7(mm)=1/2" | |||||||||||||
| 主要參數 | 08B-1單排（Single） | 08A-2雙排（Duplex） | |||||||||||
| 外徑O.D | 節徑P.D | 型號/齒數-排數 | 錐套bush | 最大孔 Max | B型凸臺Hub | 重量 W.t | 型號/齒數-排數 | 錐套bush | 最大孔 Max | B型凸臺Hub | 重量 W.t A型. Kg | ||
| 轂徑H | 輪厚L | B型. Kg | 轂徑H | 輪厚L | |||||||||
| 63.26 | 57.07 | 08B14-1 | 1008 | 25 | 46 | 22 | 0.21 | 08A14-2 | 1008 | 25 | 48 | 22 | 0.30 |
| 67.37 | 61.09 | 08B15-1 | 1008 | 25 | 46 | 22 | 0.27 | 08A15-2 | 1108 | 28 | 50 | 22 | 0.32 |
| 71.47 | 65.10 | 08B16-1 | 1108 | 28 | 52 | 22 | 0.36 | 08A16-2 | 1210 | 32 | 56 | 25 | 0.37 |
| 75.56 | 69.11 | 08B17-1 | 1210 | 32 | 60 | 25 | 0.45 | 08A17-2 | 1210 | 32 | 60 | 25 | 0.45 |
| 79.65 | 73.14 | 08B18-1 | 1210 | 32 | 60 | 25 | 0.51 | 08A18-2 | 1210 | 32 | 64 | 25 | 0.52 |
| 83.73 | 77.16 | 08B19-1 | 1210 | 32 | 63 | 25 | 0.54 | 08A19-2 | 1610 | 42 | 68 | 25 | 0.64 |
| 87.80 | 81.19 | 08B20-1 | 1610 | 42 | 71 | 25 | 0.63 | 08A20-2 | 1610 | 42 | 71 | 25 | 0.76 |
| 91.88 | 85.22 | 08B21-1 | 1610 | 42 | 71 | 25 | 0.68 | 08A21-2 | 1610 | 42 | 76 | 25 | 0.79 |
| 95.95 | 89.24 | 08B22-1 | 1610 | 42 | 76 | 25 | 0.81 | 08A22-2 | 1610 | 42 | 79 | 25 | 0.85 |
| 100.02 | 93.27 | 08B23-1 | 1610 | 42 | 76 | 25 | 0.84 | 08A23-2 | 1610 | 42 | 84 | 25 | 0.97 |
| 104.09 | 97.29 | 08B24-1 | 1610 | 42 | 76 | 25 | 0.85 | 08A24-2 | 2012 | 50 | 87 | 31.8 | 1.19 |
| 108.15 | 101.33 | 08B25-1 | 1610 | 42 | 76 | 25 | 0.90 | 08A25-2 | 2012 | 50 | 87 | 31.8 | 1.33 |
| 112.21 | 105.36 | 08B26-1 | 1610 | 42 | 76 | 25 | 0.92 | 08A26-2 | 2012 | 50 | 87 | 31.8 | 1.40 |
| 116.28 | 109.40 | 08B27-1 | 1610 | 42 | 90 | 25 | 0.95 | 08A27-2 | 2012 | 50 | 87 | 31.8 | 1.51 |
| 120.34 | 113.42 | 08B28-1 | 2012 | 50 | 90 | 31.8 | 1.45 | 08A28-2 | 2012 | 50 | 87 | 31.8 | 1.62 |
| 124.39 | 117.46 | 08B29-1 | 2012 | 50 | 90 | 31.8 | 1.49 | 08A29-2 | 2012 | 50 | 87 | 31.8 | 1.75 |
| 128.45 | 121.50 | 08B30-1 | 2012 | 50 | 90 | 31.8 | 1.54 | 08A30-2 | 2012 | 50 | 87 | 31.8 | 1.84 |
| 136.57 | 129.57 | 08B32-1 | 2012 | 50 | 90 | 31.8 | 1.71 | 08A32-2 | 2012 | 50 | 87 | 31.8 | 2.01 |
| 148.73 | 141.68 | 08B35-1 | 2012 | 50 | 90 | 31.8 | 1.89 | 08A35-2 | 2012 | 50 | 87 | 31.8 | 2.24 |
| 152.78 | 145.72 | 08B36-1 | 2012 | 50 | 90 | 31.8 | 2.07 | 08A36-2 | 2012 | 50 | 87 | 31.8 | 2.64 |
| 160.89 | 153.80 | 08B38-1 | 2012 | 50 | 102 | 31.8 | 2.26 | 08A38-2 | 2012 | 50 | 87 | 31.8 | 3.12 |
| 468.99 | 161.87 | 08B40-1 | 2012 | 50 | 102 | 31.8 | 2.39 | 08A40-2 | 2012 | 50 | 87 | 31.8 | 3.92 |
| 177.09 | 169.94 | 08B42-1 | 2012 | 50 | 102 | 31.8 | 2.52 | 08A42-2 | 2012 | 50 | 87 | 31.8 | 4.43 |
| 189.24 | 182.07 | 08B45-1 | 2012 | 50 | 102 | 31.8 | 2.65 | 08A45-2 | 2012 | 50 | 87 | 31.8 | 5.03 |
| 201.38 | 194.18 | 08B48-1 | 2012 | 50 | 102 | 31.8 | 2.95 | 08A48-2 | 2012 | 50 | 87 | 31.8 | 5.14 |
| 225.67 | 218.42 | 08B54-1 | 2012 | 50 | 102 | 31.8 | 3.25 | 08A54-2 | 2012 | 50 | 87 | 31.8 | 5.25 |
| 237.81 | 230.53 | 08B57-1 | 2012 | 50 | 102 | 31.8 | 3.66 | 08A57-2 | 2012 | 50 | 87 | 31.8 | 5.37 |
| 249.95 | 242.66 | 08B60-1 | 2012 | 50 | 102 | 31.8 | 3.82 | 08A60-2 | 2517 | 60 | 108 | 44.5 | 5.50 |
| 290.41 | 283.07 | 08B70-1 | 2012 | 50 | 102 | 31.8 | 3.98 | 08A70-2 | 2517 | 60 | 108 | 44.5 | 5.76 |
| 298.50 | 291.15 | 08B72-1 | 2012 | 50 | 102 | 31.8 | 4.14 | 08A72-2 | 2517 | 60 | 108 | 44.5 | 5.89 |
| 314.68 | 307.31 | 08B76-1 | 2012 | 50 | 102 | 31.8 | 4.30 | 08A76-2 | 2517 | 60 | 108 | 44.5 | 6.02 |
| 330.86 | 323.49 | 08B80-1 | 2012 | 50 | 102 | 31.8 | 5.04 | 08A80-2 | 2517 | 60 | 108 | 44.5 | 7.32 |
| 347.03 | 339.65 | 08B84-1 | 2012 | 50 | 102 | 31.8 | 5.98 | 08A84-2 | 2517 | 60 | 108 | 44.5 | 7.75 |
| 391.52 | 384.10 | 08B95-1 | 2012 | 50 | 102 | 31.8 | 6.82 | 08A95-2 | 2517 | 60 | 108 | 44.5 | 9.48 |
| 395.56 | 388.15 | 08B96-1 | 2012 | 50 | 102 | 31.8 | 7.59 | 08A96-2 | 2517 | 60 | 108 | 44.5 | 10.30 |
| 468.35 | 460.90 | 08B114-1 | 2517 | 60 | 108 | 44.5 | 9.40 | 08A114-2 | 2517 | 60 | 108 | 44.5 | 11.80 |
| 鏈輪排齒參數（美標、歐標） | |||||||||||||||
| 美標 | |||||||||||||||
| 鏈輪號 | 節距 | 滾子直徑 | 齒節高 | 倒角高 | 倒角寬 | 弧半徑 | 齒厚（1～4排） | 齒幅（2～3排） | 齒幅（4排） | 排距 | |||||
| SPROCKET NO: | pitch | Roller Dia | h | A | C | R | T1 | T2/T3 | T4 | B2 | B3 | B2 | B3 | B4 | Pt |
| 25 | 6.35 | 3.30 | 4.0 | 3.2 | 0.8 | 6.8 | 2.8 | 2.7 | 2.4 | 9.1 | 15.3 | 8.8 | 15.2 | 21.6 | 6.4 |
| 35 | 9.525 | 5.80 | 5.0 | 4.8 | 1.2 | 10.2 | 4.3 | 4.1 | 3.8 | 14.2 | 24.4 | 13.9 | 24 | 34.1 | 10.1 |
| 41 | 12.70 | 7.77 | 7.0 | 7.0 | 1.1 | 19.2 | 2.8 | 一 | 一 | 一 | 一 | 一 | 一 | 一 | 一 |
| 40 | 12.70 | 7.92 | 7.0 | 6.4 | 1.6 | 13.5 | 7.2 | 7.0 | 6.5 | 21.4 | 35.8 | 20.9 | 35.3 | 49.7 | 14.4 |
| 50 | 15.875 | 10.16 | 10.3 | 7.9 | 2.0 | 16.9 | 8.7 | 8.4 | 7.9 | 26.5 | 44.6 | 26 | 44.1 | 62.2 | 18.1 |
| 60 | 19.05 | 11.91 | 11.8 | 9.5 | 2.4 | 20.3 | 11.7 | 11.3 | 10.6 | 34.1 | 56.9 | 33.4 | 56.2 | 79.0 | 7.0 |
| 80 | 25.40 | 15.88 | 15.5 | 12.7 | 3.2 | 27.0 | 14.5 | 14.1 | 13.1 | 43.4 | 72.7 | 42.6 | 71.9 | 101.2 | 29.3 |
| 100 | 31.75 | 19.05 | 19.2 | 15.9 | 4.0 | 33.8 | 17.5 | 17.0 | 16.0 | 52.8 | 88.6 | 51.8 | 87.6 | 123.4 | 35.8 |
| 120 | 38.10 | 22.22 | 23.0 | 19.1 | 4.8 | 40.5 | 23.5 | 22.7 | 21.5 | 68.1 | 113.5 | 66.9 | 112.3 | 157.7 | 45.4 |
| 140 | 44.45 | 25.40 | 27.0 | 22.2 | 5.6 | 47.2 | 23.5 | 22.7 | 21.5 | 71.6 | 120.5 | 70.4 | 119.3 | 168.3 | 48.9 |
| 160 | 50.80 | 28.58 | 31.6 | 25.4 | 6.4 | 54.0 | 29.3 | 28.4 | 27.0 | 86.9 | 145.4 | 85.5 | 144 | 202.5 | 58.5 |
| 180 | 57.15 | 35.71 | 36.8 | 28.5 | 7.2 | 61.0 | 33.1 | 32.0 | 30.4 | 97.8 | 163.6 | 96.2 | 162 | 227.8 | 65.8 |
| 200 | 63.50 | 39.67 | 39.6 | 31.8 | 7.9 | 67.5 | 35.5 | 34.1 | 32.5 | 105.7 | 177.3 | 104.1 | 175.7 | 247.3 | 71.6 |
| 240 | 76.20 | 47.62 | 48.5 | 38.1 | 9.5 | 81.0 | 44.1 | 42.7 | 40.7 | 130.5 | 218.3 | 128.5 | 216.3 | 304.1 | 87.8 |
| 歐標（A、B系列鏈輪主要參數） | |||||||||||||||
| 鏈輪號 | 節距 | 滾子直徑 | 齒節高 | 倒角高 | 倒角寬 | 弧半徑 | 齒厚（1～4排） | 齒幅（2～4排） | 排距 | ||||||
| SPROCKET NO: | pitch | Roller Dia | h | A | C | R | T1 | T2/T3 | T4 | B2 | B3 | B4 | Pt | ||
| 4B | 6 | 4 | 4.1 | 3 | 0.6 | 6 | 2.6 | 2.5 | 2.4 | 一 | 一 | 一 | 一 | ||
| 5B | 8 | 5 | 5.3 | 4 | 0.8 | 8 | 2.8 | 2.7 | 2.6 | 8.3 | 13.9 | 19.4 | 5.6 | ||
| 6B | 9.525 | 6.35 | 6.2 | 4.8 | 1 | 10 | 5.3 | 5.2 | 5.0 | 15.4 | 25.6 | 35.6 | 10.2 | ||
| 8B | 12.70 | 8.51 | 8.4 | 6.4 | 1.3 | 13 | 7.2 | 7.0 | 6.8 | 21.0 | 34.9 | 48.5 | 13.9 | ||
| 10B | 15.88 | 10.16 | 10.2 | 7.9 | 1.6 | 16 | 9.1 | 9.0 | 9.0 | 25.6 | 42.2 | 58.8 | 16.6 | ||
| 12B | 19.05 | 12.07 | 11.2 | 9.5 | 2 | 19 | 11.1 | 10.8 | 10.9 | 30.4 | 49.9 | 69.4 | 19.5 | ||
| 16B | 25.40 | 15.88 | 14.6 | 12.7 | 2.5 | 26 | 16.2 | 15.8 | 15.8 | 47.7 | 79.6 | 111.5 | 30.9 | ||
| 20B | 31.75 | 19.05 | 18.0 | 15.9 | 3.5 | 32 | 18.5 | 18.2 | 18.2 | 54.6 | 91.0 | 127.5 | 36.5 | ||
| 24B | 38.10 | 25.40 | 22.4 | 19.1 | 4 | 38 | 24.1 | 23.6 | 23.6 | 72.0 | 120.3 | 168.7 | 48.4 | ||
| 28B | 44.45 | 27.94 | 24.9 | 22.2 | 5 | 44 | 29.4 | 28.8 | 28.8 | 88.4 | 148.0 | 207.6 | 59.6 | ||
| 32B | 50.80 | 29.21 | 28.2 | 25.4 | 6 | 51 | 29.4 | 28.8 | 28.8 | 87.4 | 146.0 | 204.6 | 58.6 | ||
| 40B | 63.50 | 39.37 | 34.9 | 31.8 | 8 | 64 | 36.2 | 35.4 | 35.4 | 107.7 | 180.0 | 252.3 | 72.3 | ||
| 48B | 76.20 | 48.26 | 41.8 | 38.1 | 9 | 76 | 43.3 | 42.5 | 42.5 | 133.7 | 224.9 | 316.1 | 91.2 | ||
| 56B | 88.90 | 53.98 | 50.2 | 44.5 | 11 | 89 | 50.7 | 49.6 | 49.6 | 156.2 | 262.8 | 369.4 | 106.6 | ||
| 64B | 101.60 | 63.50 | 57.8 | 50.8 | 13 | 102 | 57.9 | 56.7 | 56.7 | 176.6 | 296.5 | 416.4 | 119.9 | ||
| 72B | 114.30 | 72.39 | 66.0 | 57.2 | 15 | 114 | 65.2 | 63.8 | 63.8 | 200.1 | 336.4 | 472.7 | 136.3 | ||
